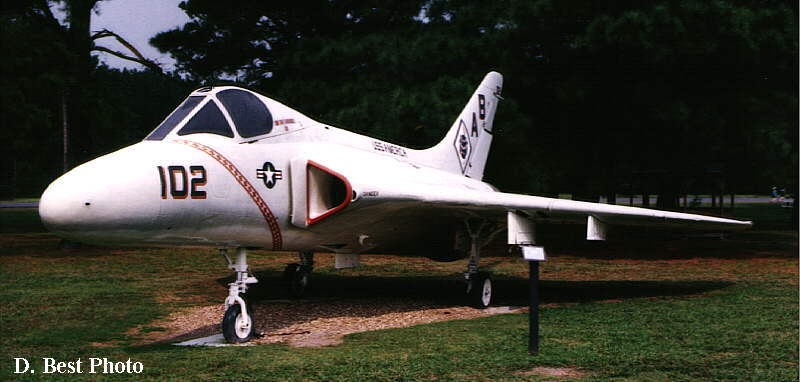

Douglas F4D-1 Skyray
 |
|---|
| Description |
|---|
| Manufacturer: | Douglas |
| Designation: | F4D |
| Version: | -1 |
| Nickname: | Skyray |
| Equivalent to: | F-6A |
| Type: | Fighter |
| Crew: | Pilot |
| Specifications |
|---|
| Length: | 45' 3" | 13.79 M |
| Height: | 13' | 3.96 M |
| Wingspan: | 33' 6" | 10.21 M |
| Wingarea: | 557.00 Sq Ft | 51.75 Sq M |
| Empty Weight: | 16024.0 lbs | 7268.00 Kg |
| Gross Weight: | 27060.0 lbs | 12297.0 Kg |
| Max Weight: | 27116.0lbs | 12300.0 Kg |
| Propulsion |
|---|
| No. of Engines: | 1 |
| Powerplant: | Pratt & Whitney J57-P-8 |
| Thrust (each): | 10200 | 4627 |
| Performance |
|---|
| Range: | 700 miles | 1127.00 Km |
| Cruise Speed: | 520.00 mph | 837.00 Km/H | 452.43 Kt |
| Max Speed: | 722.00 Mph | 1162.00 Km/H | 628.11 Kt |
| Climb: | 18300.0 Ft/min | 5580.00 M/min |
| Ceiling: | 55000.0 Ft | 16765.0 M |
